How To Choose A Swing Gate

Selecting an industrial swing gate requires knowing a few different things. First, you will want to know the size opening you are trying to protect with the swing gate. The second thing is you will need to know what style finish you need for your work environment.

EGA Industrial Safety Swing Gate Model Number Code

• Model Number code format is: SCG(Self-closing Gate) – (N=Narrow, W=Wide, X=Extra Wide) – (Y=Safety Yellow, G=Galvanized, S=Stainless)

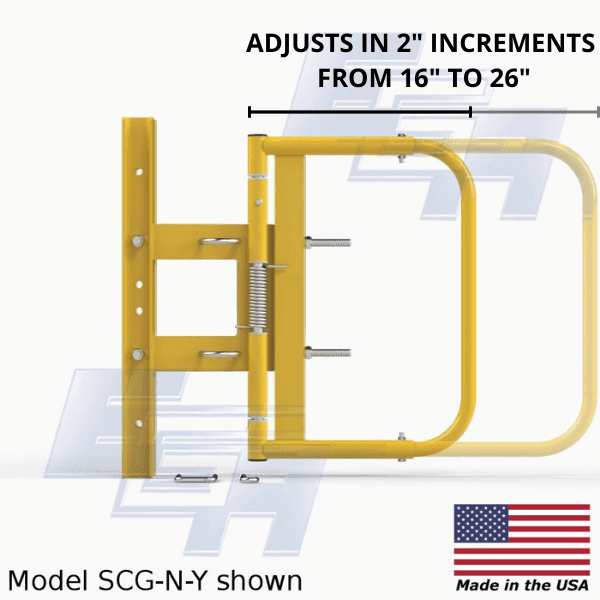

  • Example: SCG-N-Y: SCG-(Self-closing gate) – N=Narrow – Y=Safety Yellow

How to Select an Industrial Safety Swing Gate

1. Determine the opening that the gate is needed for. EGA narrow gates (-N) are adjustable for 16 to 26 inch openings. EGA wide gates (-W) are adjustable for 24 to 40 inch openings. EGA extra wide gates (-X) are adjustable 40 to 48 inch openings.
2. Determine the finish that is appropriate for your environment. EGA swing gates are available in safety yellow (-Y), Galvanized (-G) or Stainless Steel (-S).
3. Choose a swing gate that meets the required OSHA and other local safety standards.

To view EGA’s industrial swing gates click here. To learn more about fall protection and security in the warehouse, read our industrial swing gates blog post.
